Product Overview

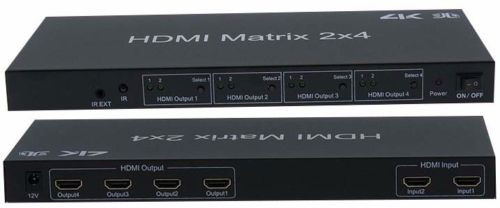

This is a true matrix 2 x 4 switch, up to 2 source devices and up to 4 displays can be connected. You can have the same video mirroed on all displays, or use the switch to send different video to each monitor. Input source for each display is selected by pushig button on HDMI matrix box, or using remote control.
110511 has IR extension function. You can control source devices and the matrix either at source device location or from remote display location.
Say you have a TV and source devices such as cable box and blueray player in the living room, and second TV in the bed room upstairs. Take remote controls upstairs at night. You can change TV channel or switch to blueray palyer on the bed without going downstairs to living room.
** IR remote control adapters are sold seperately. **
* True matrix 2 x 4
* Two input / 4 output
* LED display for input /output selection
* Select input/output by IR remote control or manual switch
* Desktop or wall mount
* HDMI 1.4a compliant, HDCP 1.2 compliant
* Full 1080p, 3D support
* IR extension function; IR adapter required
* Digital audio format, DTS-HD/Dolby-True-HD/LPCM7.1/DTS/DSD
* Built-in equalizer support output up to 60Ft HDMI cable
* Size: 280x157x28mm (11x6.2x1.1")
Product content:
1 -- HDMI 2 x 4 matrix switch
1 -- IR remote control
1 -- DC5V 2A power supply
