Product Overview

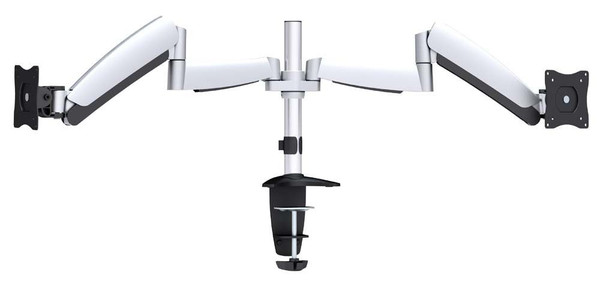

This counter balance mount is constructed with solid steel, elegant die casting aluminum and are integrated with innovative counterbalance technology. This allows the monitor to articulate up and down and well as in and out.
Each arm can hold screen up to 44lbs (20Kg). Built-in spring tension gauge can be easily adjusted to fit varied weights that arm holds. Advanced VESA plate includes -15 to +15 degrees of fingertip tilt that enable both sit to stand and touch screen applications. The plate also allows +/- 3 degrees screen level adjustment. A hidden cable management integrated in arm easily conceals cables beneath channel covers.
The stand can be mounted on the edge of the desk using a clamp or any place on the desk by making a hole.
* Fit for most 13"-23" flat TV/monitors
* Tilt: -40° ~ +90°
* Swivel: 180°
* Rotate 360°
* VESA compliant: 75x75, 100x100
* Max. Arm reach: 25" (500mm)
* Clamping height: 0.4 ~ 3.5" (10-90mm)
* Max monitor weight: 9Kg (19.8lbs) per mount
* All mounting hardware included
